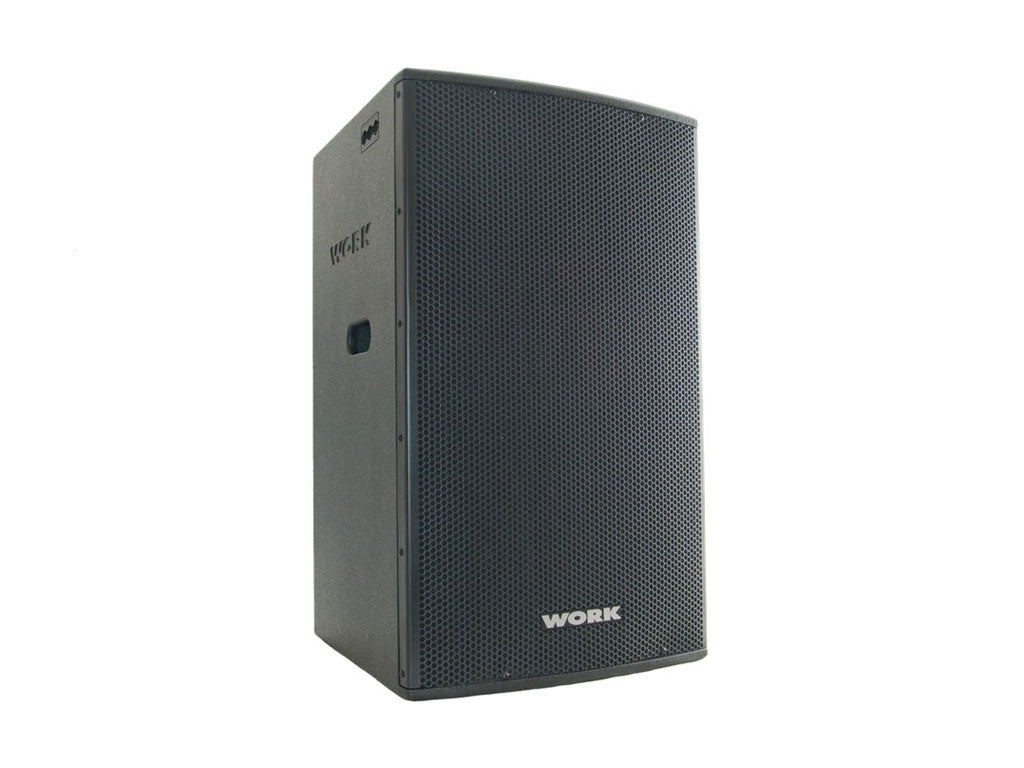

Open image in slideshow, MINO 12 Active

MINO 12 Active

$965.00

Bi-amplified loudspeaker 800 W peak. 12'' Woofer + 3'' Driver. Built-in DSP.

 Technical Data:

Type 2 ways. Bi-amplified
Power LF: 650 W peak Class-D, HF: 150 W peak Class-D
LF Transducer 12" Woofer, 3" Voicecoil
HF Transducer 1.4" Compression driver, 3" Voicecoil
Input Impedance 20 KOhm
Input Sensitivity +4 dBu
Frequency Range (-10 dB): 60 Hz - 19 KHz, (-6dB): 66 Hz - 17 KHz
SPL Max. 123 dB
Coverage Angle (H x V) 80º x 50º
Protections RMS and Peak limiters, Overload
Enclosure material Byrch plywood
Finished Polyuretan paint
Connections Power Input: 1 x IEC 16A, Mic In: 1 x XLR3, Line In: 1 x XLR3, 1 x pair RCA, Audio Out: 1 x XLR3
Inserts / Rigging 3 upper and lower rigging points, 35 mm insertion for stand
Colour Black
